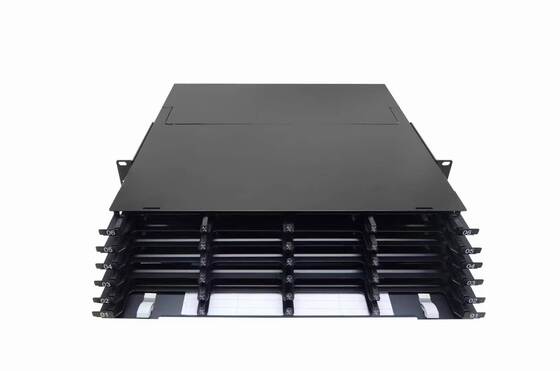

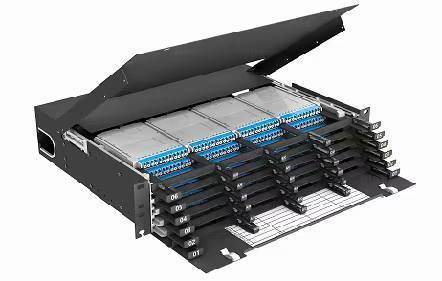

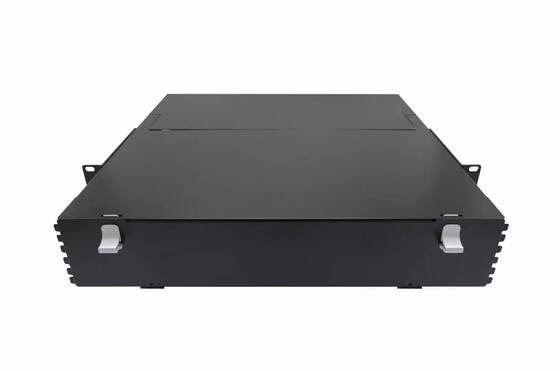

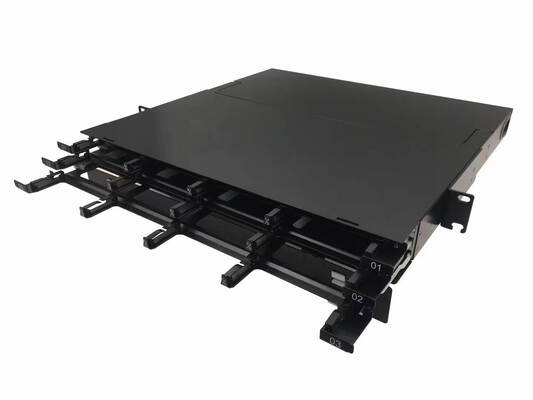

2U 288 Cores MTP MPO -LC Patch panel ODF Chassis enclosure Sliding type for 24 Cassettes
Description:
Specification:
|
Parameters |
|
| Model |
TW-2U24MDB01 |
|
Max. No. of Cores |
288 Cores LC |
|
Main Body Thick |
1.2mm |
|
Max of Cassettes |
12 pcs |
|
Cassettes capacity |
12 Fibers |
|
Color of Splice Tray |
Black |
|
Material |
Cold rolled steel sheet |
|
Adapter Panel |
LC,ST,FC,SC |
|
Cassete type |
MPO/MTP to LC |
|
Withstanding Voltage (V/min) |
3000 (DC), no breakdown, no flashover |
|
Installation Type |
Rack Mount |
|
Color |
Black |
|
Operating Temperature (°C) |
-40~ +60 |
|
Dimensions (mm) |
430*428*88mm |
|
Weight (kg) |
5kg |
Features:
♦ It is made of high quality cold rolled steel plate with a thickness of 1.2mm.
♦ No burr, no bubbles, no screw fixing, clip type top cover, no tool opening.
♦ After strict degreasing, pickling, rust-proof phosphating and pure water cleaning, which meets RoHS environmental protection standards.
♦ Suitable for 19 inch standard frame.
♦ Compact design for space saving.
♦ Modular design, which can be used in multiple module boxes and configured in MPO-LC Type Distribution Box.
♦ The MPO ribbon multi-core fiber is divided into multiple lc interfaces to realize parallel conversion of MPO-LC.
Application:
1. CATV,Metro test equipment
2. Telcommunication networks
3. Local area networks(LAN)
4. Wide area networks(WAN)
5. Premise installations
